BoxBox Lite

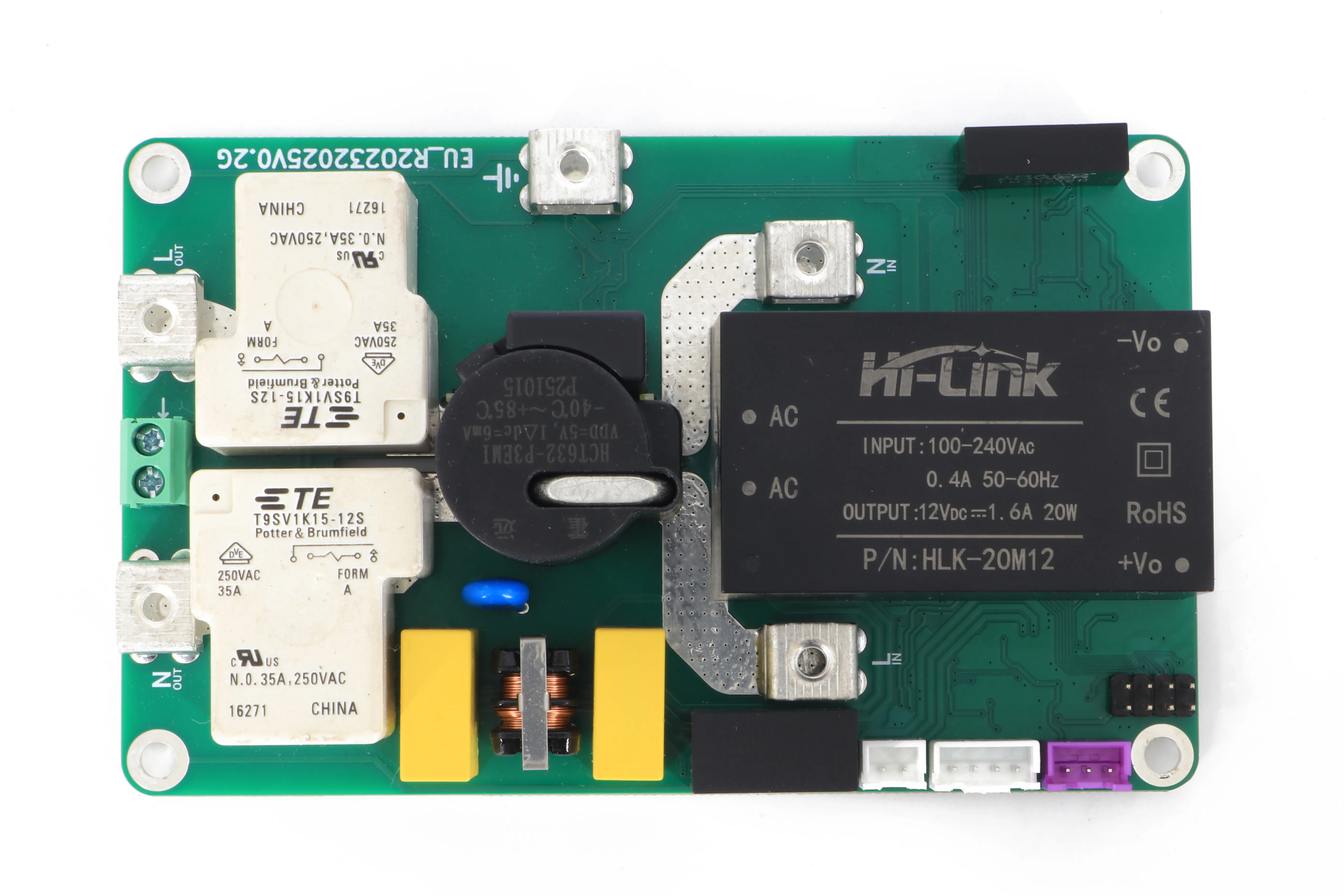

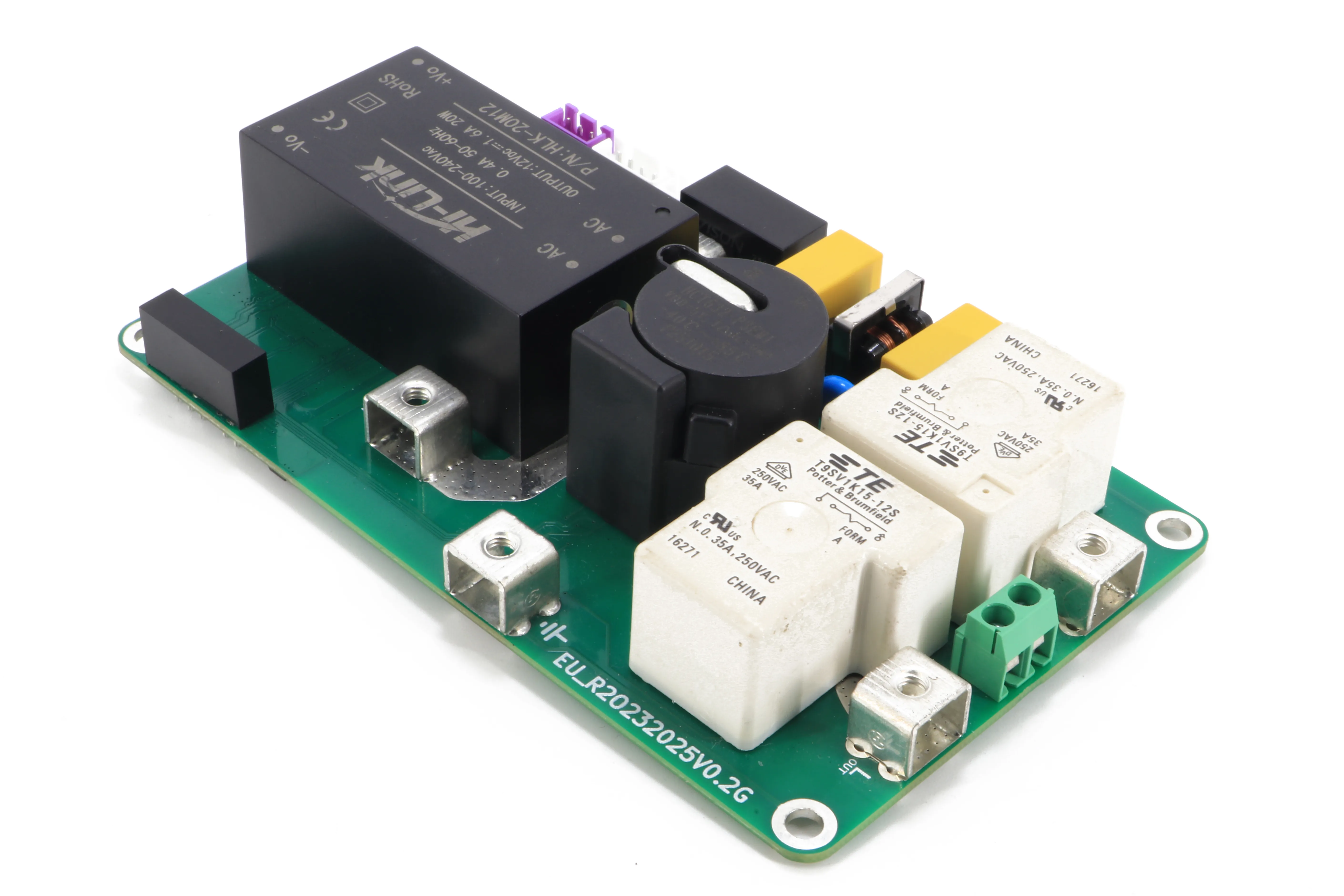

Offline 7.2 kW AC charging control board. Power it, pick a current, charge.
$49 per unit · volume pricing on request
Request a quoteThe BoxBox Lite runs the charge session on its own: no backend, no Wi-Fi, no configuration. Select the current with the button, plug in, and the board handles the pilot handshake, protection and metering.
- No app, no network, no setup
- Five current levels, selected with one button

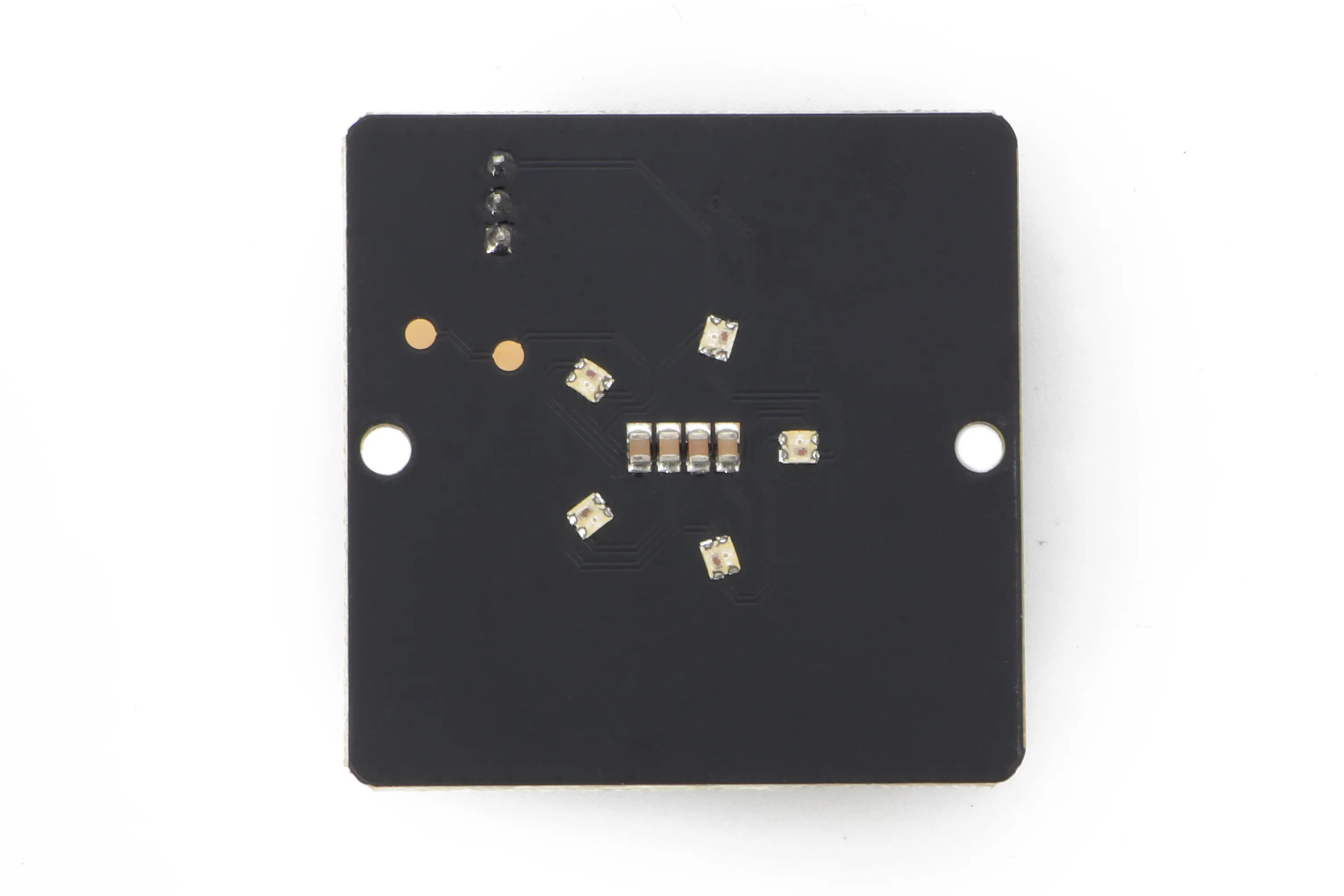

- Charging state shown on the LED ring
- Thousands of units sold and running in Jordan
| Connectivity | None — standalone operation |
|---|
| Supply | 230 V AC, single-phase, 50 Hz |
|---|---|
| Max current | 32 A |
| Rated power | 7.2 kW |
| Current settings | 6 / 10 / 16 / 24 / 32 A, retained after power loss |
| Control pilot | 1 kHz PWM per IEC 61851-1, states A / B / C / F |
| Residual current | Type B — AC, pulsating DC and smooth DC (6 mA DC per IEC 62955); self-test at boot |
| Over-current | Pause 33.5–35.5 A; latch ≥ 35.5 A |
| Over-temperature | Derate to 16 A at ~90 °C; cut-off at ~105 °C |
| Over-voltage | Cut-out above 270 V; MOV + fuse |
| Metering | Voltage, current, power, energy |
| Controller | ESP32 |
| Interface | Push button, 5 × RGB LED ring |
