BoxBox OCPP
Connected 7.2 kW AC charging control board — OCPP 1.6, smart charging and over-the-air updates.
$89 per unit · volume pricing on request
Request a quoteThe BoxBox OCPP talks straight to your OCPP backend. There is no BoxBox server in the path, so your charger, your data and your backend choice stay yours. Operators get session control, remote current limits and fleet-wide firmware updates; without a backend, a jumper switches it to standalone mode.
- Connects directly to your OCPP 1.6 backend — no BoxBox cloud in between
- No BoxBox account, subscription or lock-in; the owner controls the charger
- Remote start and stop
- Smart charging — backend sets the current limit
- Over-the-air firmware updates with automatic rollback
- Wi-Fi setup from a phone browser
- Jumper selects standalone or OCPP mode
| Connectivity | Wi-Fi 2.4 GHz |
|---|---|
| Protocol | OCPP 1.6-J |
| Firmware updates | Over-the-air, with rollback |
| Operating modes | Standalone or OCPP (jumper select) |
| Supply | 230 V AC, single-phase, 50 Hz |
|---|---|
| Max current | 32 A |
| Rated power | 7.2 kW |
| Current settings | 6 / 10 / 16 / 24 / 32 A, retained after power loss |
| Control pilot | 1 kHz PWM per IEC 61851-1, states A / B / C / F |
| Residual current | Type B — AC, pulsating DC and smooth DC (6 mA DC per IEC 62955); self-test at boot |
| Over-current | Pause 33.5–35.5 A; latch ≥ 35.5 A |
| Over-temperature | Derate to 16 A at ~90 °C; cut-off at ~105 °C |
| Over-voltage | Cut-out above 270 V; MOV + fuse |
| Metering | Voltage, current, power, energy |

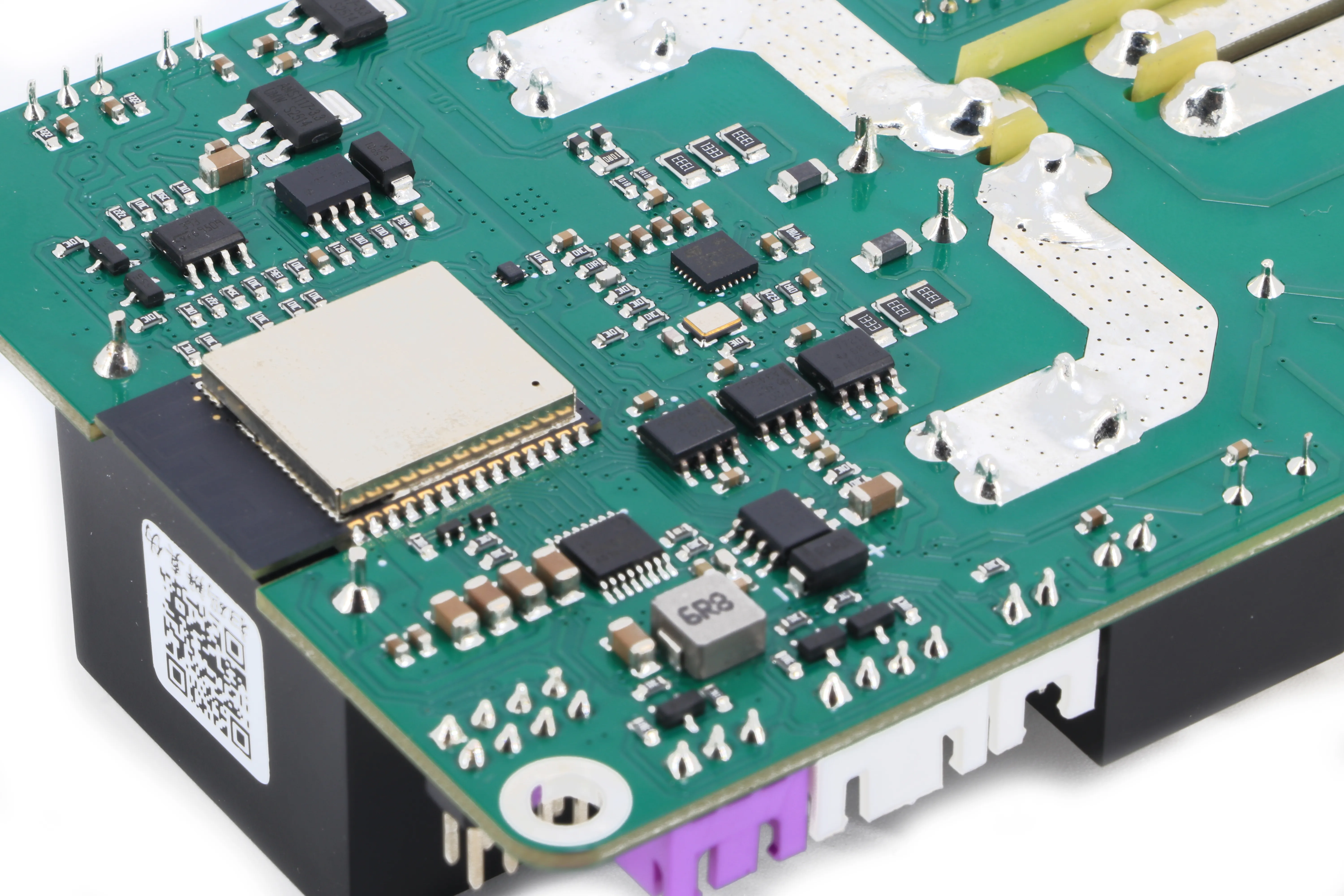

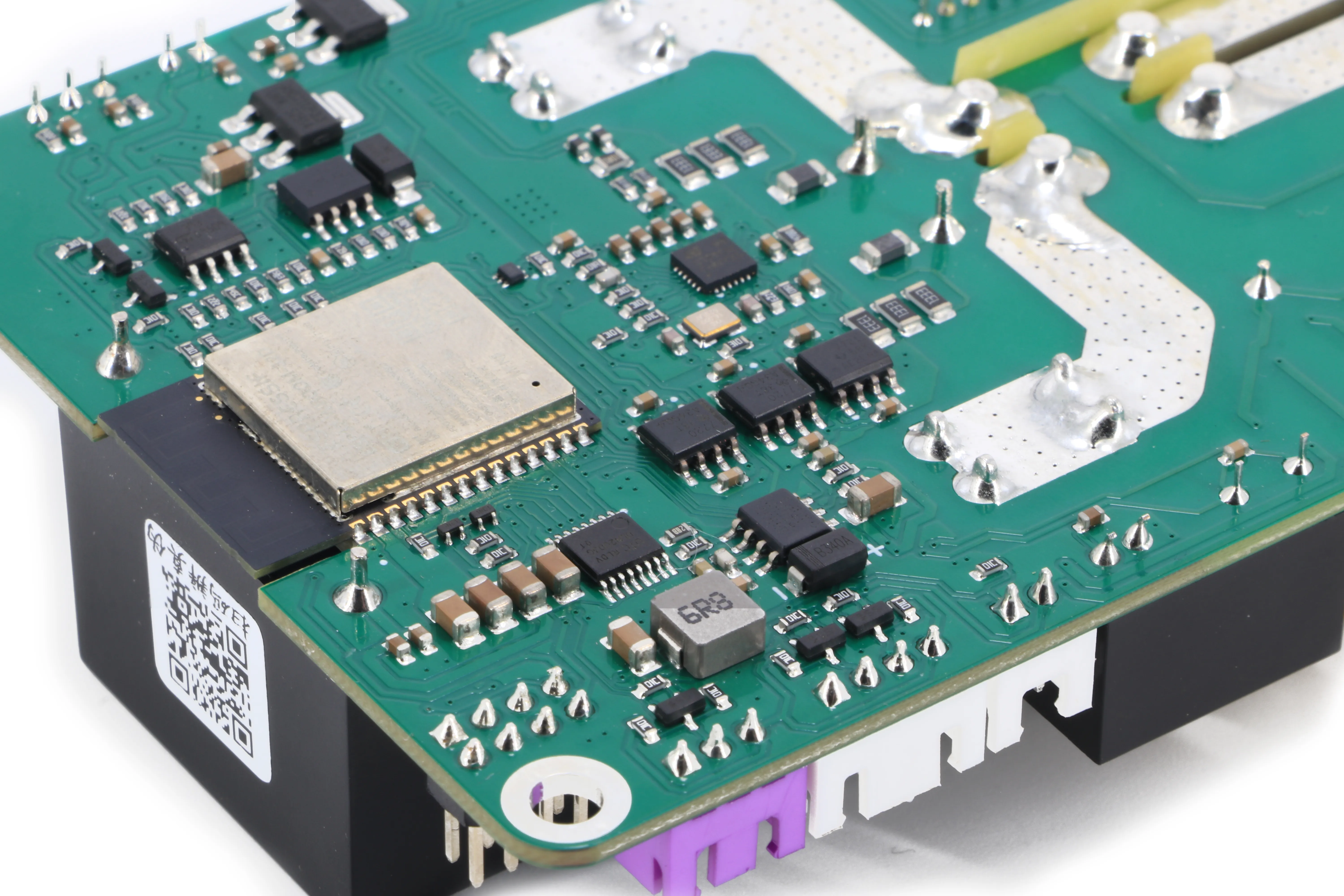

| Controller | ESP32 |
| Interface | Push button, 5 × RGB LED ring |
